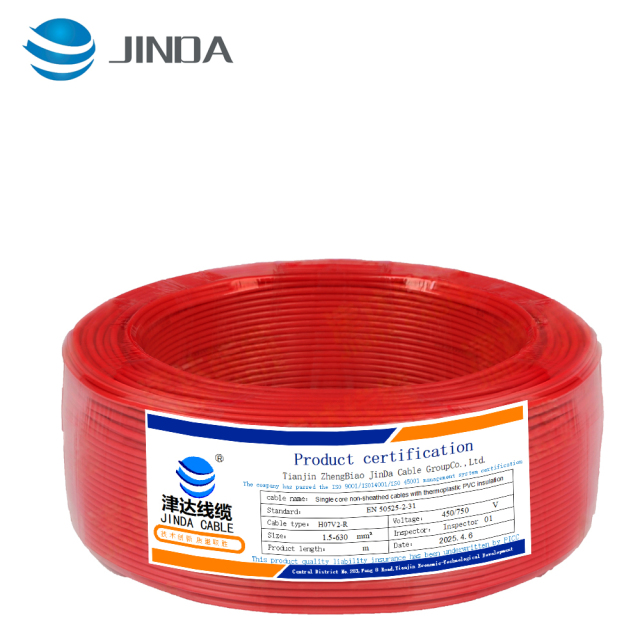

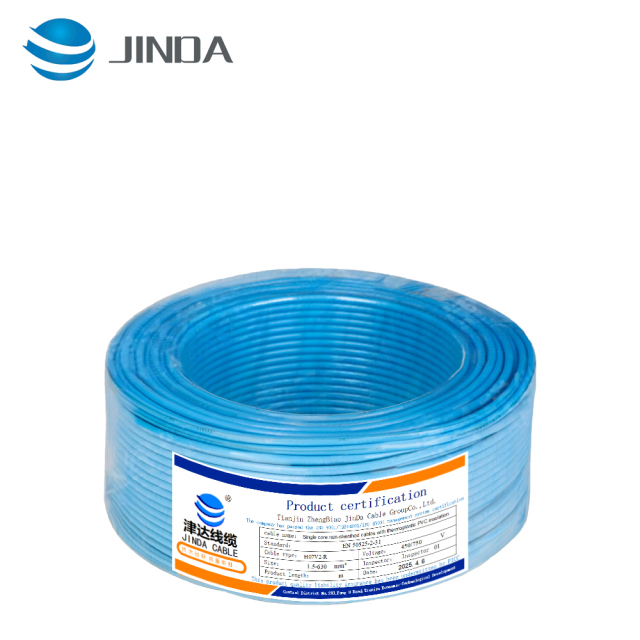

Application and Description
This special heat-resistant soft single-core electronic wire is mainly used in power installations, switch cabinets,
motors and transformers in high temperature (such as glazing machines and drying towers, etc.) environments.
These are also suitable for internal wiring of electrical equipment such as lighting and heating equipment.
Standards and Approvals
Cable Construction
- Stranded flexible bare copper conductor
- Complies with VDE-0295 Cl 5, IEC 60228 Cl-5, BS 6360 cl. 5 and HD 383
- Heat resistant PVC TI3 insulation, complies with VDE 0281 Part 7
- Core color coding complies with VDE-0293
- H07V2-R (16 gauge and above)
Technical Features
- Working voltage: 300/500v (H05V2-K)/ 450/750v (H07V2-K)
- Test voltage: 2000 V
- Dynamic bending radius: 10-15 x Ø
- Static bending radius: 10-15 x Ø
- Operating temperature in application: +5º C to +90º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable parameters：
|
Number of cores x conductor cross-sectional area # x mm² |
Nominal insulation thickness mm |
Nominal outer diameter mm |
Nominal copper weight kg/km |
Nominal cable weight kg/km |
|
|
H07V2-R |
|||||
|
1 x 1.5 |
0,7 |
3.4 |
14.4 |
20 |
|
|
1 x 2.5 |
0,8 |
4.1 |
24 |
33.3 |
|
|
1 x 4 |
0,8 |
4.8 |
38 |
48.3 |
|
|
1 x 6 |
0,8 |
5.3 |
58 |
68.5 |
|
|
1 x 10 |
1,0 |
6.8 |
96 |
115 |
|
|
1 x 16 |
1,0 |
8.1 |
154 |
170 |
|
|
1 x 25 |
1,2 |
10.2 |
240 |
270 |
|
|
1 x 35 |
1,2 |
11.7 |
336 |
367 |
|
|
1 x 50 |
1,4 |
13.9 |
480 |
520 |
|
|
1 x 70 |
1,4 |
16 |
672 |
729 |
|
|
1 x 95 |
1,6 |
18.2 |
912 |
962 |
|
|
1 x 120 |
1,6 |
20.2 |
1115 |
1235 |
|
|
1 x 150 |
1,8 |
22.5 |
1440 |
1523 |
|
|
1 x 185 |
2,0 |
24.9 |
1776 |
1850 |
|
|
1 x 240 |
2,2 |
28.4 |
2304 |
2430 |
|
